Apple /// Power Supply Pinout
PostedSeptember 17, 2020
UpdatedSeptember 17, 2022
Bywebmaster

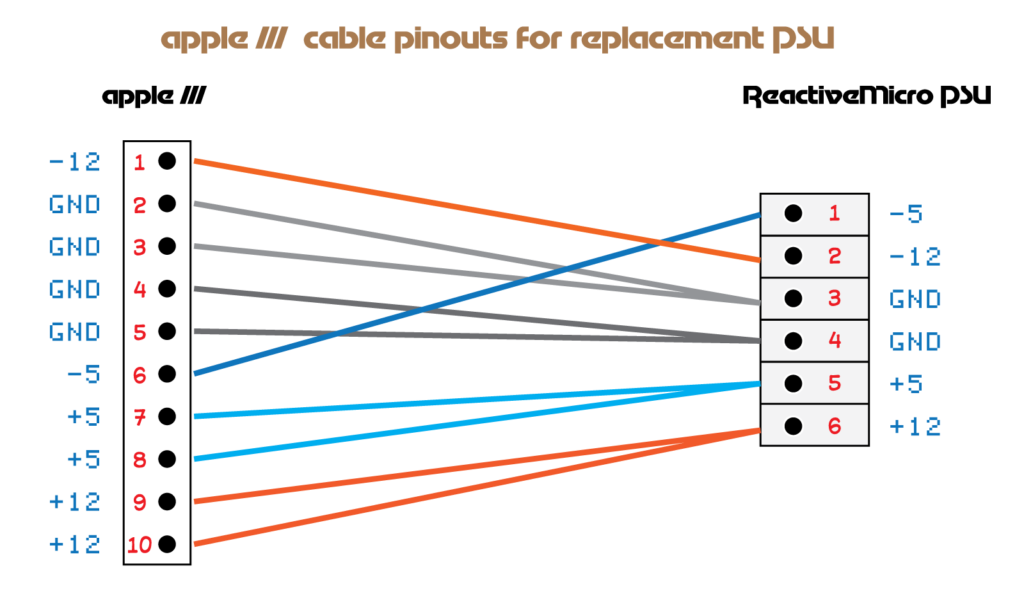

The Apple III power supply can be replaced for a new ReactiveMicro PSU replacement, but the cable has to be modified to connect to the new connectors. This can be a little tricky, this graphic will help to make the connections correctly.
